9kW ISO30 ATC Spindle: The Super Guide

Mastering High-Speed Precision Engineering and Industrial Integration.

On This Page
01

Engineering Overview

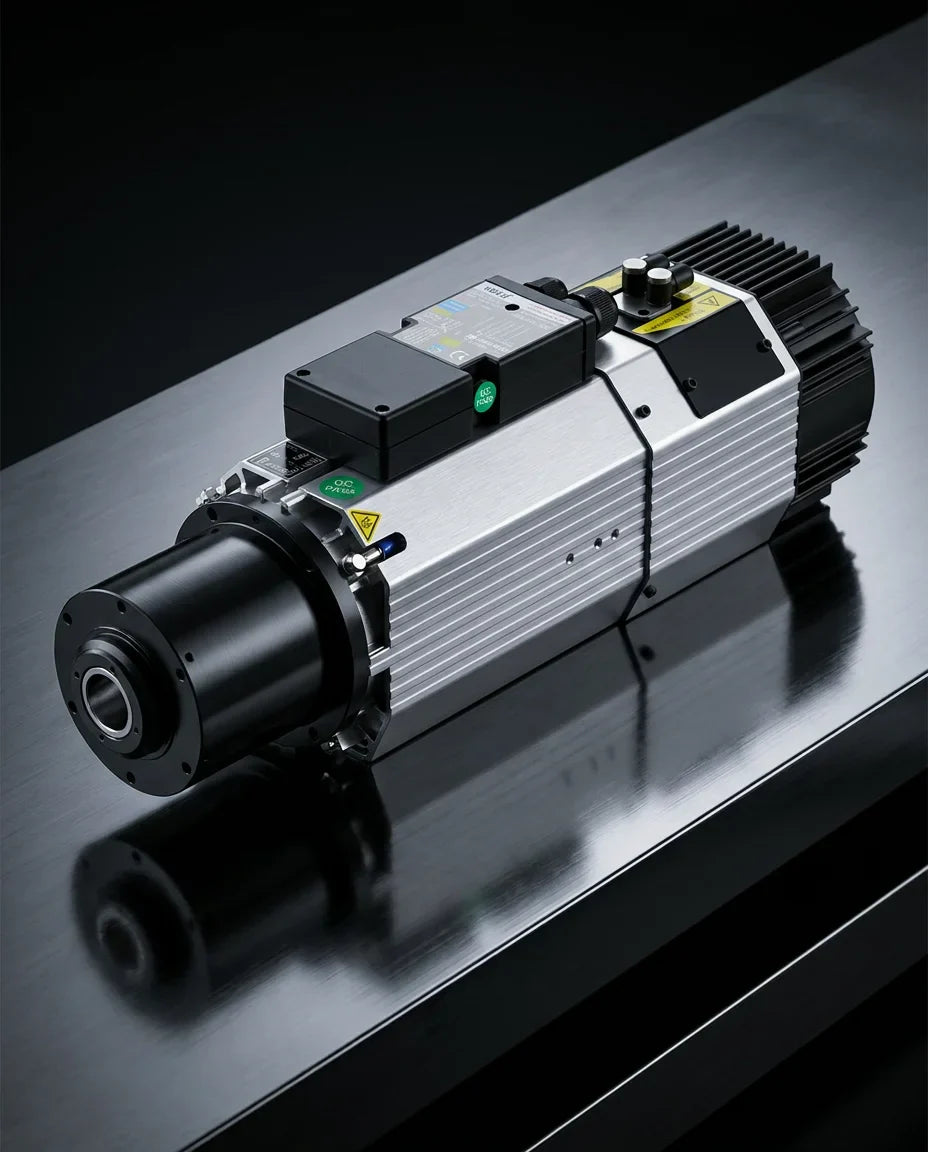

The Lingyu 9kW ISO30 ATC Spindle is the industrial benchmark for high-speed nesting and aerospace-grade aluminum milling.

Designed for 24/7 continuous operation, this asynchronous motor combines extreme torque density with sub-3 micron radial accuracy. Whether you are a machine builder (OEM) in North America or an aerospace integrator in Germany, this spindle provides the "Brain and Muscle" required for 2026 industrial standards.

02

Technical Data & Performance Curves

Rated Power9.0 kW (12.0 HP) / S1-100% Duty
Max Speed24,000 RPM (Constant Torque to 12k)
Runout (TIR)< 0.003mm (Sub-3 Micron Guarantee)
BalancingG0.4 Grade (Laser Calibrated)
Bearings4x P4 High-Speed Ceramic (Hybrid)
03

Top 10 Technical Advantages

1. Zero-Vibration Housing: Optimized for G0.4 standards.
2. Positive Air Curtain: Pushes MDF dust away from bearings.
3. Thermal Compensation: < 0.01mm Z-axis growth.
4. Industrial Sensor Logic: Standard 24V PNP S1/S2/S3.
05

Hardcore Technical FAQs

Q: Can this 9kW spindle run 24 hours without overheating?
Yes. By utilizing P4 ceramic bearings and a dual-fan forced air cooling system, the internal temperature remains under 45°C even after 12 hours of continuous S6-60% load.
Q: Why is G0.4 balance required for aerospace aluminum?
At 24,000 RPM, harmonic vibration murders tool life. G0.4 ensures your cutting edge remains in absolute contact, preventing micro-chatter marks.

Comparison Hub: 9kW vs 12kW

Recommendation: While 12kW offers 25% more torque, the 9kW ISO30 remains the optimal choice for furniture OEMs due to its superior power-to-weight ratio and faster acceleration/deceleration cycles during nesting.
